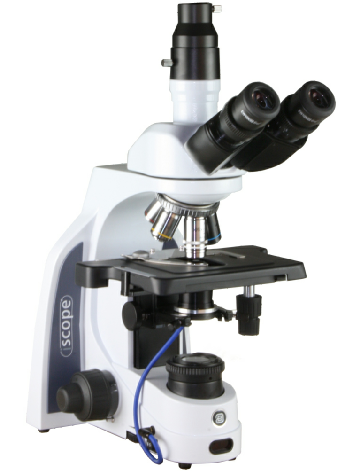

DARKFIELD IMMERSION MICROSCOPE
For the study and analysis of unstained materials this new darkfield microscope from Euromex is hard to beat for specification, performance and cost.
Ergonomic stand with well placed controls and intuitive set up allows the user to focus on the diagnosis not the microscope!
The special high NA ‘darkfield condenser uses indirect illumination to enable observation of the structure in transparent and/or low contrast against a dark background.
This makes it ideally suited to viewing red blood corpuscles, to observe changes in shape or function which can give indications of possible pathological diseases
It’s also ideal for samples such as oil emulsions which cannot be stained or easily seen in bright light for checking consistency, size and clarity.
In order to see the amount of detail required a high quality 100x objective with a built-in iris diaphragm is used, this gives the viewer a total magnification of 1000x and the diaphragm allows increased contrast, gives a dark background and resolves detail in the sample.
To make observation even easier the high NA condenser has built-in 5W LED illumination giving the equivalent of 150w light directly onto the specimen with no heat given off, (essential for live specimens).
4x,10x & 40x objectives are also supplied for use in brightfield illumination. A trinocular fitting and CCD mount is included to enable use with the Euromex HDMI camera
