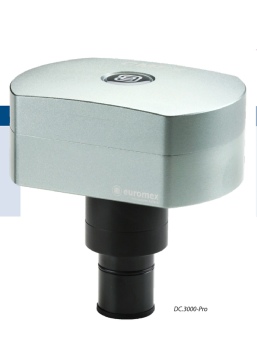

 sCMEX

USB -3 cameras with Scientific   gr a d e  sCMOS sensor

3.1, 6 and 20MP models

H I G H L I G H T S

• Highest speed camera

• SONY Exmor R sCMOS colour USB3.0 camera

• Low signal/noise ratio

• USB 3.0 interface

• Back-illuminated sCMOS sensor

• Perfect colour-reproduction capability

TECHNICAL SPECIFI C AT I O NS

 Sensor  SONY Exmor R sCMOS

 Scan mode  Progressive, rolling shutter

 Filter  RGB

 Mount  C-mount

 Exposure  Automatic or manual

 White Balance  Automatic or manual

 Data interface  USB 3.0 high speed

 Operation  -10~50°C, 30-80 % humidity

 Storage temperature -20~60°C

 Power supply  5V over PC USB Port

 Housing  Integrated CNC aluminium alloy compact housing

Complete with:

0.5x objective with C-mount (for sCMEX-3 and sCMEX-6)

1 x objective with C-mount (for sCMEX-20),

 cable, 30 and 30.5mm adapters for stereo microscopes

76 x 24 mm calibration slide (1mm/100),

USB 3 and CD ROM with ImageFocus Alpha software,

Software

ImageFocus Alpha, image and video capturing and measuring software for Win 7/ 8/ 10 (32 and 64 bit configurations)

PC requirements: Compatible with Intel Core 2, 2.8 GHZ

or higher, 2GB, USB-3 high speed, 17 inch display

A Mac OS Light software version is also supplied,

image capturing only
