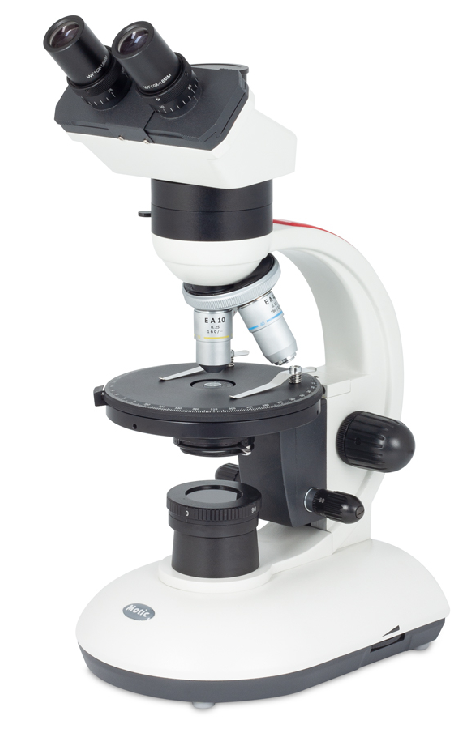

PM-1820 LED Cordless


A binocular Polarization microscope with LED illumination for College, Laboratory and dedicated amateurs.

Thin-sections of minerals and rocks, fibres and foils, even botanical samples: With its 360° rotatable stage, this microscope exceeds the simple Pol contrast of a biological microscope in terms of a precise detection of birefringence.

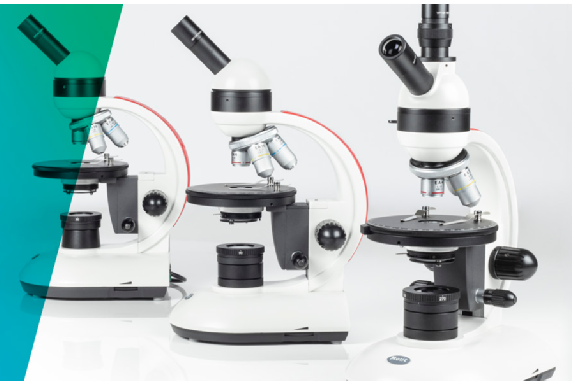

The PM Series features EA Achromatic objectives in a 160mm Finite system. Monocular or binocular, one WF 10X/18 eyepiece carries a crosshair reticule for sample orientation.

The PM microscopes feature a 20W Halogen illumination with intensity control (exception: PM1805LED with 0.5W LED). A focusable 1.25 N.A. Abbe condenser with iris diaphragm and filter holder cares for an optimised illumination.

A reversed 4-fold nosepiece allows an easy change of slides. The 360° rotatable stage with 1° scale carries 2 sample clips for a safe fixation of the sample. The PM Series is based on a separate coarse/fine mechanism with tension adjustment (coaxial focus in PM2805).

The 360° rotatable polarizer works with a swing in/out analysers
