New from Graticules Optics

Grid and scale images on film cover slips - the simple way to perform direct measurements and counts. Just place the cover slip over the specimen or on the cover glass *

Uses…

As a coverslip, to give direct measurements.

As a counting gird

As an eyepiece reticule - guide circles are include (FNE1only)

As a stage micrometer to calibrate your microscope.

As a specimen support

As a direct reading scale with magnifiers

Film Cover Slip CMC1

These film cover slips are supplied in boxes of 25pcs, each 22mm x 22mm x 0.18mm thick. The image is a 10mm length scale in 0.1mm divisions. Each 5th and 10th line is longer so that measurements can easily be determined.

Film slip cover CMC 35

These film cover slips are supplied in boxes of 25pcs, each 22mm x 22mm x 0.18mm thick. The image is a 10 x 10 grid of 1.0mm squares and each square is individually indexed with numbers 0 - 99.

Film Cover Slip CMC71

These film cover slips are supplied in boxes of 25pcs, each 22mm x 22mm x 0.18mm thick.  Image is a 20 x 20 grid of 0.5mm squares indexed 1 - 20 along the top/centre and A - T down the side/centre.

Film Cover Slip CMC34A

These film cover slips are supplied in boxes of 25pcs, each 22mm x 22mm x 0.18mm thick. There are 5 separate images and each is a 10 x 10 grid of 0.1mm squares indexed 1 - 10 along the top and A - J down the side

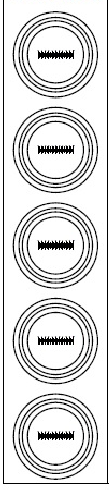

FNE1 Film Reticules

Key Features

 10 film reticules per pack - Scale 10mm in 0.1mm divisions

Simple 10mm in 0.1mm divisions scale on polyester film that can be cut to size. 2 strips of 5 images in each pack. Circles are marked around the scale image to give guidance when cutting.

* Note: Due to the short depth of field these products may not be suitable for use with higher magnification objectives.

FNE1

FILM RETICULES
