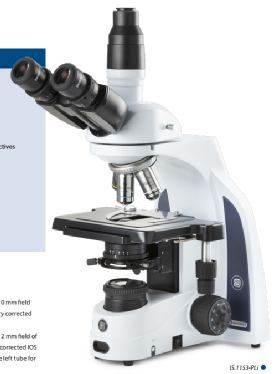

EUROMEX iScope

EWF 10x/22 mm and EWF10x/20 mm eyepieces

Binocular and trinocular models and new SLC (smart light control) model

Optional ergonomic tilting head*

Quintuple reversed nosepiece

E-plan, plan and plan phase objectives

E-plan, plan and plan phase infinity corrected IOS objectives

140 mm x 160 mm stage

216 mm x 150 mm rackless stage

Optional ceramic coated stage

Height adjustable Abbe condenser NA 1.25

Cardioid mirror dark field condenser with 5 W NeoLED™ illumination

Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination

with internal 100-240 V power supply

iCare sensor for energy saving

CSS - Cable Storage System

10 years warranty

*Ergonomic Tilting Head

Optional ergonomic 5 to 35° tilting head

Interpupillary distance 48-75 mm

Optional photo attachment with standard Ø 23.2 mm tube (only infinity corrected models)

(To order an iScope  with tilting head use reference IS.1158-xxx.

For example to order an IS.1152-PLi model with ergonomic tilting head order IS.1158-PLi)

 Stages

The iScope® can be equipped with three types of stages:

- 140 x 160 mm stage equipped with integrated 79 x 52 mm X-Y mechanical stage

- 216 x 150 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm X-Y mechanical stage.   The iScope® rackless stage has no protruding parts, enables more smooth movements and is safer

- 220 x 157 mm ceramic stage with integrated 75 x 50 mm X-Y mechanical stage protects with a very tough ceramic surface against marks and scratches.  The surface also ensures stray light will not be reflected from the stage into the objective

• The iScope® can be supplied with a heating stage which can be set up to 50° Celsius by a PID temperature controller

• Only available with new purchased microscopes
