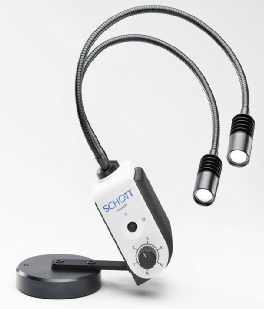

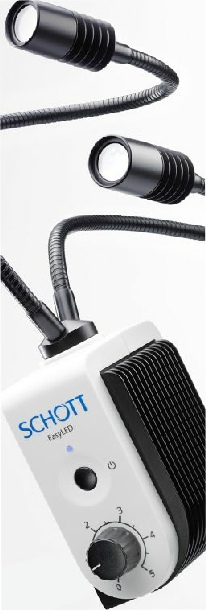

EasyLED

The new Schott EasyLED light source has a smart design and allows the user to upgrade their stereomicroscope illumination without buying a new ‘scope.

It can be mounted to any microscope stand or used as a stand-alone illumination device. Brightness is equivalent to a 100W halogen cold light source.

Continuous dimming (0 – 100 %) with separate on/off switch

Convection cooling (no fan)

single plus or dual plus systems

Also available are the Schott Easy LED ringlight series

Features

• No separate controller box

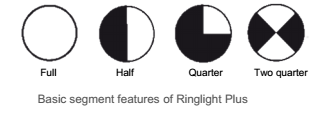

• Ringlight Plus version available with basic segment

features and segment rotation. Easy and intuitive

operation via integrated “jog dial” wheel.

• Ergonomic operating (not necessary to remove eyes

from the eyepieces).

• Continuous dimming from 0 to 100%.

• Wide input range power supply (100 - 240 V).

• World wide plug (clip system).

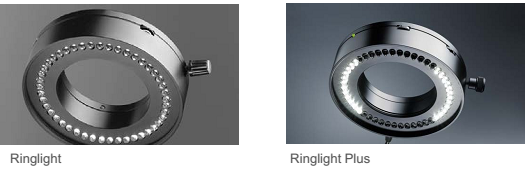

Ringlight  (cat 600 200 55)

35 mm (2.17” - 5.31”)

90 klx (at 75 mm FWD) 66 mm (2.60”) 12 V, DC

Ringlight Plus (cat  600 300 50)

130 mm (1.97” - 5.12”)

140 klx (at 65 mm FWD) 66 mm (2.60”) 12 V, DC

Objective Adaptors for Ringlights

Ø 58 mm to Ø 66 mm 157 450

Ø 60 mm to Ø 66 mm 157 452
