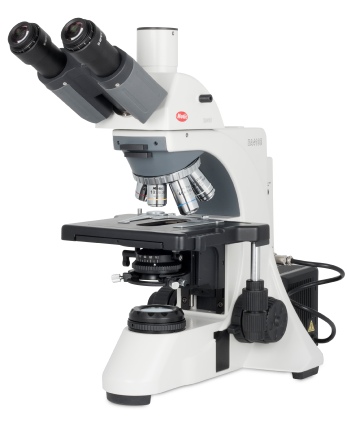

Motic BA410E



The Elite version of Motic’s established BA410 flagship model displays the highest level of optical performance.

A complete set of Plan Apochromatic lenses is now available for maximum demands in colour reproduction and resolution.

The BA410E allows a profound diagnosis in pathology, haematology and cytology with their requirements for best colour fidelity.  Increase Numerical Apertures provide an expanded resolution power for a more detailed specimen evaluation.

The AUTO ON-OFF function with its energy-saving aspect improves lab safety: a final instrument check before closing time is no longer necessary.

A light memory function, based on a coded 6-fold nosepiece, memorizes the light intensity of each nosepiece position. When changing to a specific objective, the last illumination setup of this position is recalled. Once coordinated, there is no need to adjust the illumination when changing magnification.

For increased illumination power, a 100W Halogen version is also available.

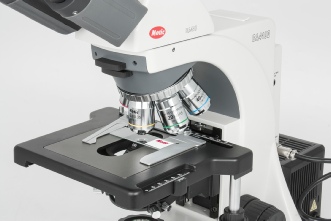

The rackless stage concept, well known from BA210/BA310 Elite models, is now adopted in this flagship model.

A ceramic stage insert for highest abrasion resistance guarantees a perfectly flat placing of the glass slide for a lifetime.


A  full range of filtersets are available for use with Motic’s own fluorescence system or alternatively using the new coolLED pE outfits.


Teaching head system with up to 5 stations is also part of the 410E family.


Main Features

Optional Plan Apochromatic lenses
AUTO ON-OFF function
Light memory function, coded 6-fold nosepiece
Ceramic stage insert
