Sales, service and repair - we have you covered for all situations

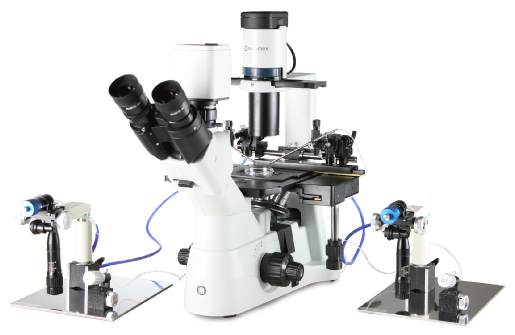

 ISCI (Intracytoplasmic Sperm Injection)  set for

Oxion Inverso


Specification

• Perfect for inexperienced users in need of training practice

    as well as for professionals

• Complete manual system

• Large movement range

• Easy micropipette position at each time ‘Manual Home    Position’

• Adjustable micropipette holder angle between 20° and 40°

• Micropipette holder fixing knob reduces vibration and easy    handling of the sperm

• Easy installation and service

• 3D Hydraulic Manipulation Joysticks for smooth movement

• Pneumatic Air Injector for ICSI and HOLDING

• No service required for injector

•Identical sensitive injectors on both sides and   interchangeable

• Top quality for affordable price

• Medical Device CE mark

• Movement Range: X/Y/Z: 20 mm each, 1 mm for one    complete turn of the handle

• Optional heating stage with controller


I S C I  S E T

Set includes two 3D hydraulic joysticks, two pipette setup mechanisms, one connection bar with moving handle, two air injectors with tubing and pen type micromanipulation, pipette holder, two metal plates for injectors, one set of Allen wrenches, one ruler for mechanic home position adjustment


 Optionally available :

Heating glass stage  with 110mm circular hole

2 Channel Temperature Controller with touchscreen interface

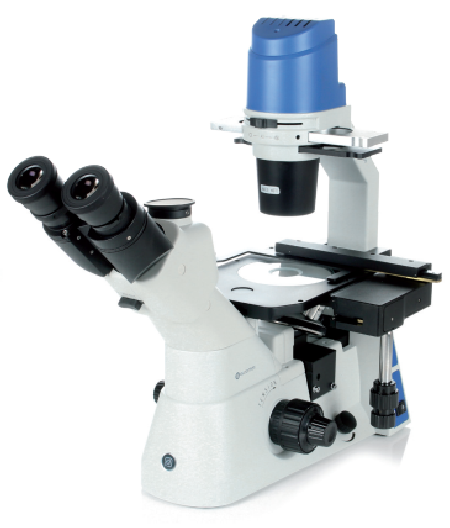

OXION INVERSO MICROSCOPE


• Life Science applications

• Observation of tissue cultures, living cells

• Brightfield, phase contrast and fluorescence

• Long working distance IOS plan achromatic objectives

• Revolving quintuple nosepiece

• 5 W LED transmitted illumination

• 10 years warranty


Brightfield, phase contrast and Fluorescence options
