Portable Measuring Microscopes

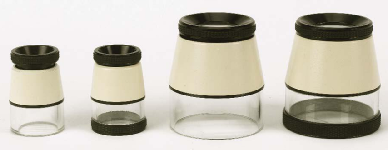

MAG 6 / MAG 7 MAGNIFIERS

A range of hand-held magnifiers for measurement and inspection.  Their robust construction, flat field and all glass optics, make them ideal aids for those concerned with inspection, quality control, drafting, photography, map making, electronics etc.  The clear base allows ample light to fall on the specimen surface being measured, and the eye lens can be focused. to give the sharpest image.

Interchangeable graticules can be fitted in the base ring to suit the measurement purpose.

Ideal for, amongst others:

Examination of printed circuit boards,

Checking of defects on finished parts

Measurement of print lines and characters

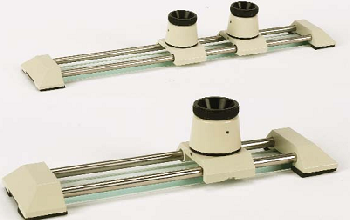

MEASURING SCALES

If you need a simple and accurate scale for performing measurements on flat objects then the Pyser Inspecta Magnified Measuring Scales are the ideal solution. Ranging in length from 150mm to 600mm and in imperial versions too, these scales offer unrivalled quality and precision. Little or no training is required before operators can perform measuring tasks on-line or in the laboratory. With no electrical parts, all glass optics for the best possible definition, the scales are precision divided and applied using a chrome deposition technique for durability and, unusually,  fully serviceable.

Typical measurement  applications:

 Printing, Packaging, Artwork, Maps, PCB Manufacture

Industrial/Commercial Photography,Navigation Chart

PORTABLE MICROSCOPES

The Inspecta range of superior portable microscopes are all fitted with high quality precision optics to give the best possible performance.

Their robust construction ensures many years of trouble free use. Unusual in products these days is the ability to service these microscopes.

Ideal for : Artworks - Slits and apertures - Paint finish Negatives and transparencies  -  Micro circuits

Printing and  packaging  -  Material  imperfections   PCB tracks and holes  -  Particles and    droplets



MODULAR MICROSCOPES

Where a standard microscope is not suitable, the Inspecta products can be selected and assembled to give exactly the right optical viewing system.

CCTV or digital cameras allow   the   system to be   further  enhanced.   Pyser  have designed the Inspecta range to be easily specified and assembled, and have created a series of proven solutions to make it even easier to select the correct components.

IVIS VIDEO INSPECTION SYSTEM

The   IVIS   Industrial   Vision   Inspection   System

is   designed   to   provide   the   facility   to   quickly   view

components for visual faults using a CCTV system and integrated LCD monitor. The unit is fitted with a 6x zoom lens providing an on screen magnification from 20x to 120x, with an optional adaptor this can be increased from 30x to 180x.

Both   top   (incident)   and   bottom   (transmitted)   lighting   is included,  allowing suitable lighting for all inspection applications. The flexibility of this instrument allows inspection of thin objects such as blank circuit boards and assemblies up to 9cm high.
